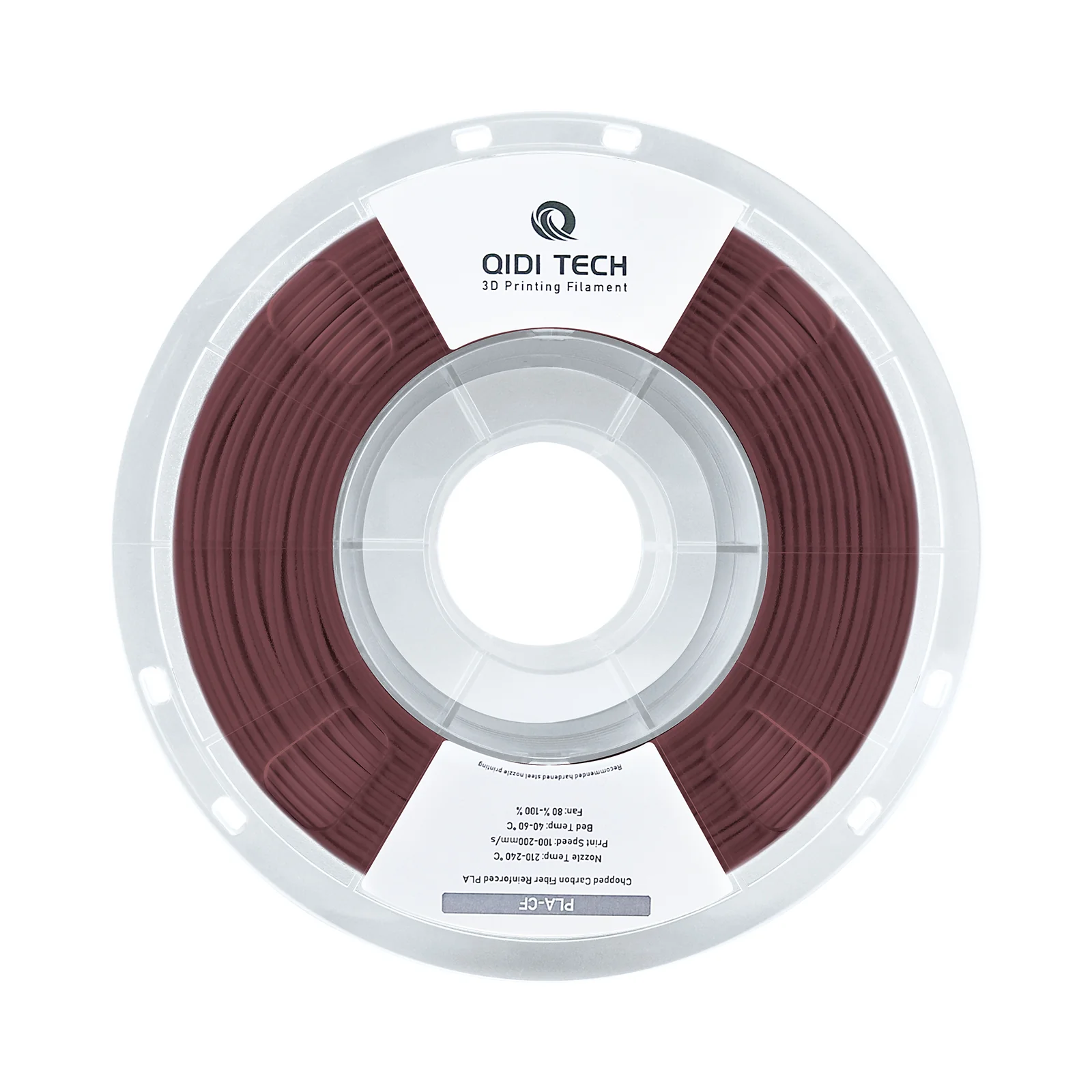

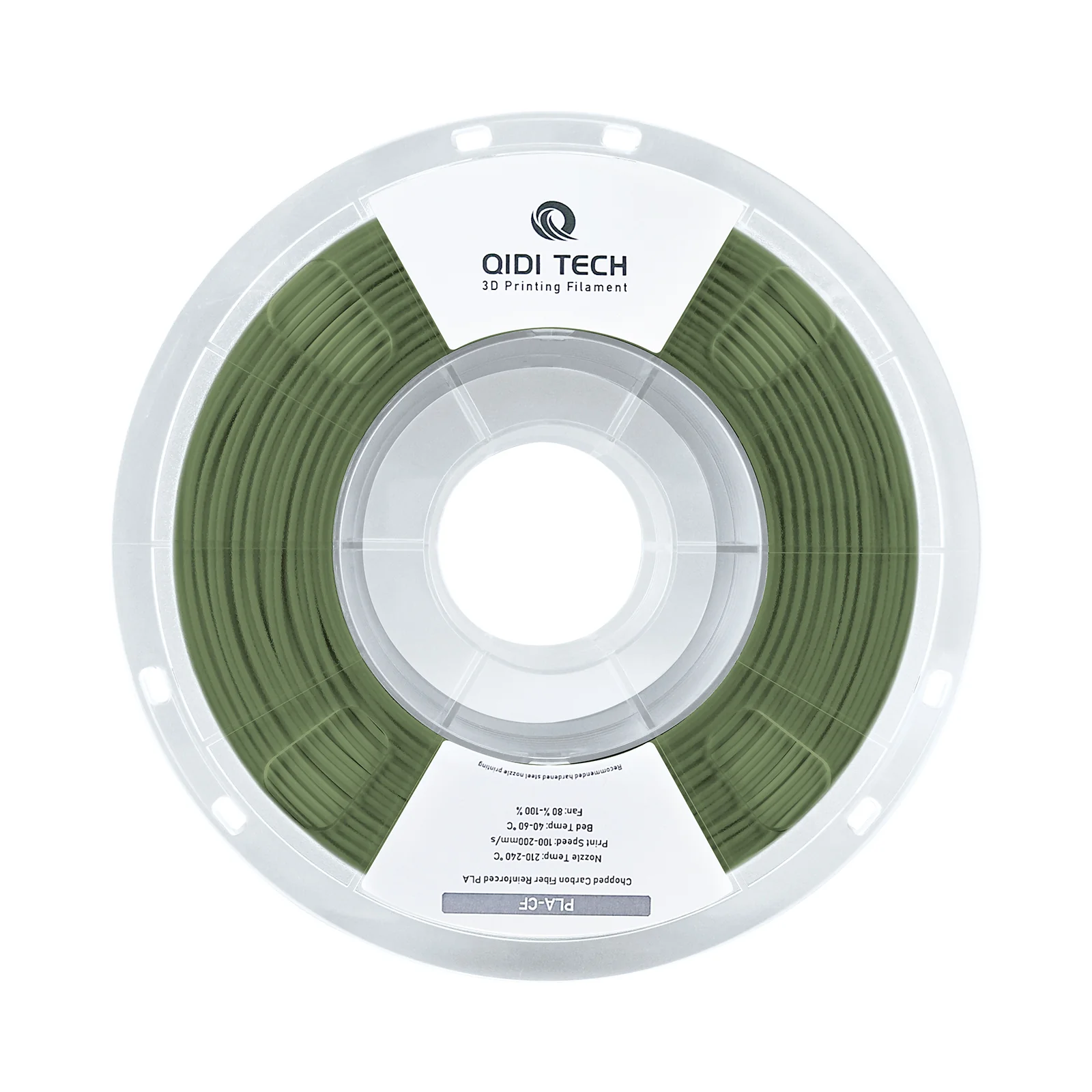

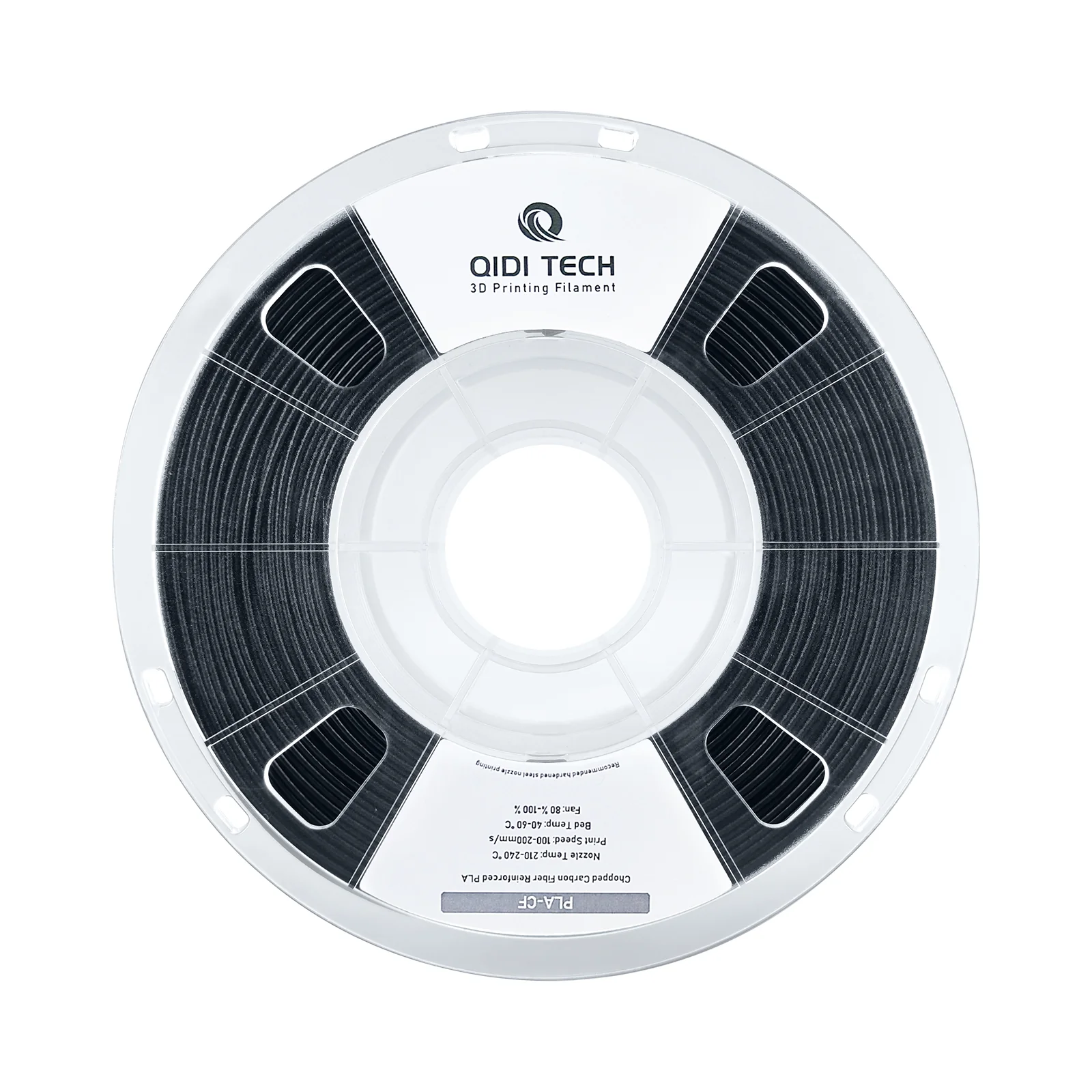

PLA-CF Filament

Overview:

QIDI PLA-CF is chopped carbon fiber reinforced PLA FDM material.. PLA-CF is easy to print and beginner-friendly like regular PLA. High-quality and affordably priced. The surface of the model will have a carbon fiber matte texture.

• Carbon Fiber Texture & Minimized Layer Lines
• Improved Mechanical Properties
• Stabilized Printing Dimension

Filament Guide(QIDI Wiki)

Recommended printing conditions:

Recommended Nozzle Diameter	≥0.4 mm
Nozzle Temperature	210-240°C
Print speed	≤200 mm/s
Recommended build surface treatment	PEI Film
Build plate temperature	40-60°C
Raft separation distance	0.08-0.12 mm
Cooling fan speed	80%-100%
Retraction distance	1-3 mm
Retraction speed	1800-3600 mm/min
Chamber Temperature	/
Additional Suggestions：
After the material is damp, there will be more printing oozing, bubbles extruded and rough printing surface. Please dry the filament in an oven at 50°C for 4-6h to restore the printing quality of QIDI PLA-CF.
Phaetus hardened steel and above grade nozzles shall be selected, which can effectively improve the print quality.
